KACO new energy supplies Israels largest floating PV plant with German inverter technology

Virtual Central system solution provides a perfect fit

Save Water – Produce green energy – Think big. These guiding principles have led KACO new energy GmbH and its local partner Altitude to supply Israel’s biggest floating solar park with power electronics equipment. The Virtual Central system design by KACO new energy is perfectly made for a power plant like this: It reduces investment costs, increases yields and makes maintenance an ease.

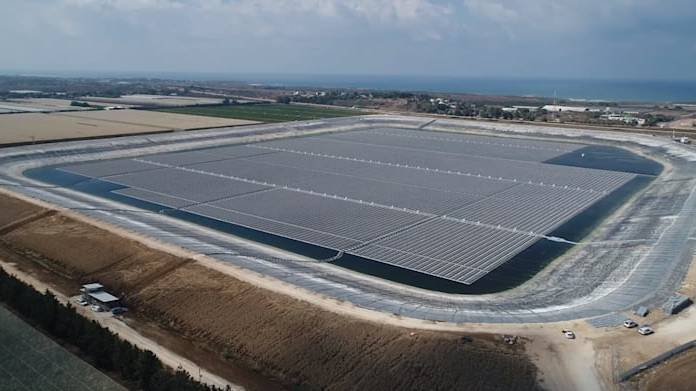

The floating PV field on the Habonim reservoir. Picture: Shikun & Binui

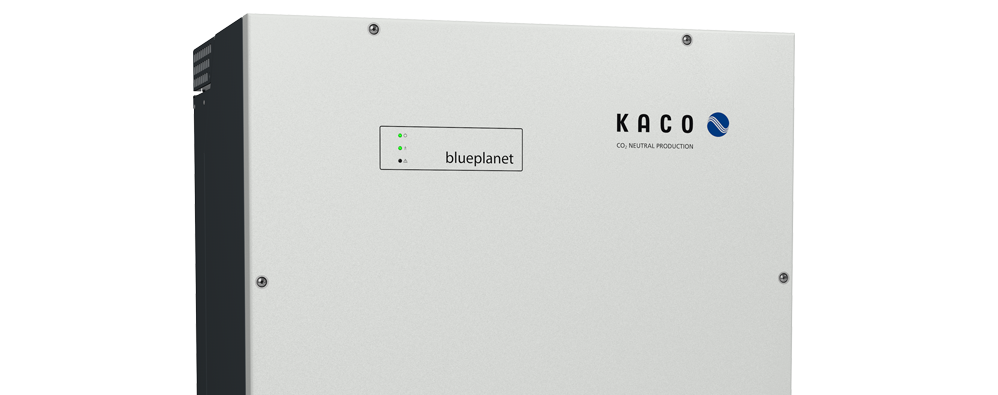

Solar PV inverter blueplanet 150 TL3

Solar PV inverter blueplanet 150 TL3

Water evaporation and an unused reservoir surface

The Habonim water reservoir is located in the coastal region south of Haifa. The reservoir contains 3.3 million cubic meters of water, covering an area of 112,50 acres. The water is used for regional agriculture activities. During hot days, some of the water evaporates from the reservoir and cannot be used for agriculture anymore.
Fortunately, Israel has committed itself to a high use of renewable energy. This goal comes with new challenges. Israel is facing space constrains, for example. Solar energy is thus competing with other important infrastructure projects.


Solar system stops water evaporation and provides new space

Since September 2021, the Habonim water reservoir is covered by 51,500 solar modules, with a total power of 23 MW. This floating PV plant generate clean energy for 3,000 households. The system is designed in the innovative Virtual Central design
The solar module strings are collected in DC-Combiner boxes which also take care of the string monitoring. The DC-Combiner boxes are located on the floating structure on the reservoir. From there, DC cables transport the energy to the designated inverter hubs, which are land-based next to the reservoir. This eases the operation and maintenance activities on the 120 blueplanet 150 TL3 string inverters from our German production facility and which are available in Israel through our distribution partner Altitude
The solar modules prevent water from evaporation, so that more water can be used for agricultural purposes. Another mayor benefit of a floating solar system is the fact that usual ground-mounted solar systems frequently face space competition with other important infrastructure projects like schools or hospitals. Floating solar systems are free from such conflicts; setting them up on water leaves more space for other projects.


Innovative Virtual Central approach reduces costs and increases yield

The Virtual Central design offers a host of other advantages for floating solar systems. Since the inverters can be installed next to the reservoir, there is no need of extensive cabling. Only single-MPPT inverters by KACO new energy can be deployed in this fashion. Furthermore, power losses stay on the DC side and a highly efficient energy transport from the reservoir to land at 1500 VDC can take place. Thanks to this, and due to the superior efficiency of up to 99.2%, the single-MPPT inverters can provide higher yields than conventional system designs with multi-MPPT inverters.
This has been confirmed recently by independent research institutes. Since less cables are required for this design, the investment costs for the Balance of System can be reduced by up to 10%. This leads to overall reduced investment costs.
In summary it can be said that the Virtual Central approach reduces investment costs, ensures higher yields and is very advantageous for operating and maintenance activities, especially on floating PV systems. Other floating PV systems that rely on the Virtual Central approach are in development and will be deployed soon.

Details about the superior yield of Single MPPT inverters have recently been published by the Fraunhofer Institute for Solar Energy Systems.
